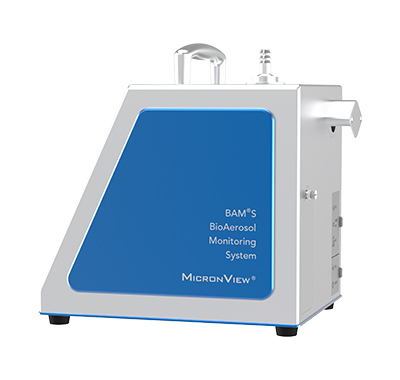

Portable BioAerosol Monitoring System for Sterility Test
BioAerosol Monitoring System (BAMS) is used for real-time environmental monitoring of microorganisms in the air.
Capacitive touch screen 8.0″
Portable 5.8Kg
Continuous monitoring 7*24hr
Mass storage 119G
MicronView takes advantage of optics and biotechnology to achieve fast,real-time sterile environment monitoring,by providing advanced monitoring instruments and consumables for production environments and finished products of food,pharmaceutical and cosmetic industries.
Our products are mainly used in two areas-cleanrooms and compressed gas, to monitor microbial and particles.Products include BioAerosol Moni-toring System,Airborne Particle Counter,BioAerosol Air Sampler and com-pressed gas microbial and particle monitoring instruments.Our advanced and comprehensive real time solutions help environmental monitoring personnel to detect microbial and particulate pollution in real time,enabling the investigation of pollution sources in less time, and the reliable electronic compressed gas control system makes the detection of microbes and particles in compressed gas easier and more efficient than ever.
SPECIFICATIONS
SIZE RANGE: 0.5µm - 25µm
LASER SOURCE: Long life laser
COUNT EFFICIENCY: 50% ±20% for 0.5µm, 100% ±10% for >0.75µm (meets ISO 21501-4 and JIS B9921)
FLOW RATE: 5LPM±3%
ZONE / LOCATION: 20,000 rooms and 200,000 locations
SAMPLING MODE: Manual, auto, beep, cumulative count Σ/ differential count Δ or concentration
CONCENTRATION LIMIT: 4,000,000 particles/ft³at 10% coincidence loss
EXHAUST: Internal HEPA filter (>99.997%@0.3µm)
COMMUNICATION: RJ45, USB, SENSER-HUB, WIFI
EXPORT FILE: PDF file or EXCEL file
DATA STORAGE: 119G
DATA SECURITY: Authority management, authority level divide into admin, operator and supervisor
ALARM: Audible built-in alarm
DIMENSIONS (HxWxD): 10x7.87x10.39 in/255x200x264mm (with handle and foot mat)
WEIGHT: 12.8lbs/5.8Kg (without battery)
ENCLOSURE: 316L Stainless Steel and anodized aluminum
OPERATING CONDITIONS: Temperature: 5°C -35° C / 41°F - 95°F, Relative humidity: 5-90% non-condensing
SAFETY: EN 61010-1:2010, EN 61326-1:2013, EN 61326-2:2:2013, EN 60825-1:2014, EN 61000-6-1:2007, EN 61000-6-3:2007+A1, FCC Part 15, Subpart B, EN 300 328 V2.1.1: 2016, ETSI EN 301 489-1 V2.2.0: 2017, ETSI EN 301 489-17 V3.2.0: 2017, EN 62311:2008, EN 62479:
