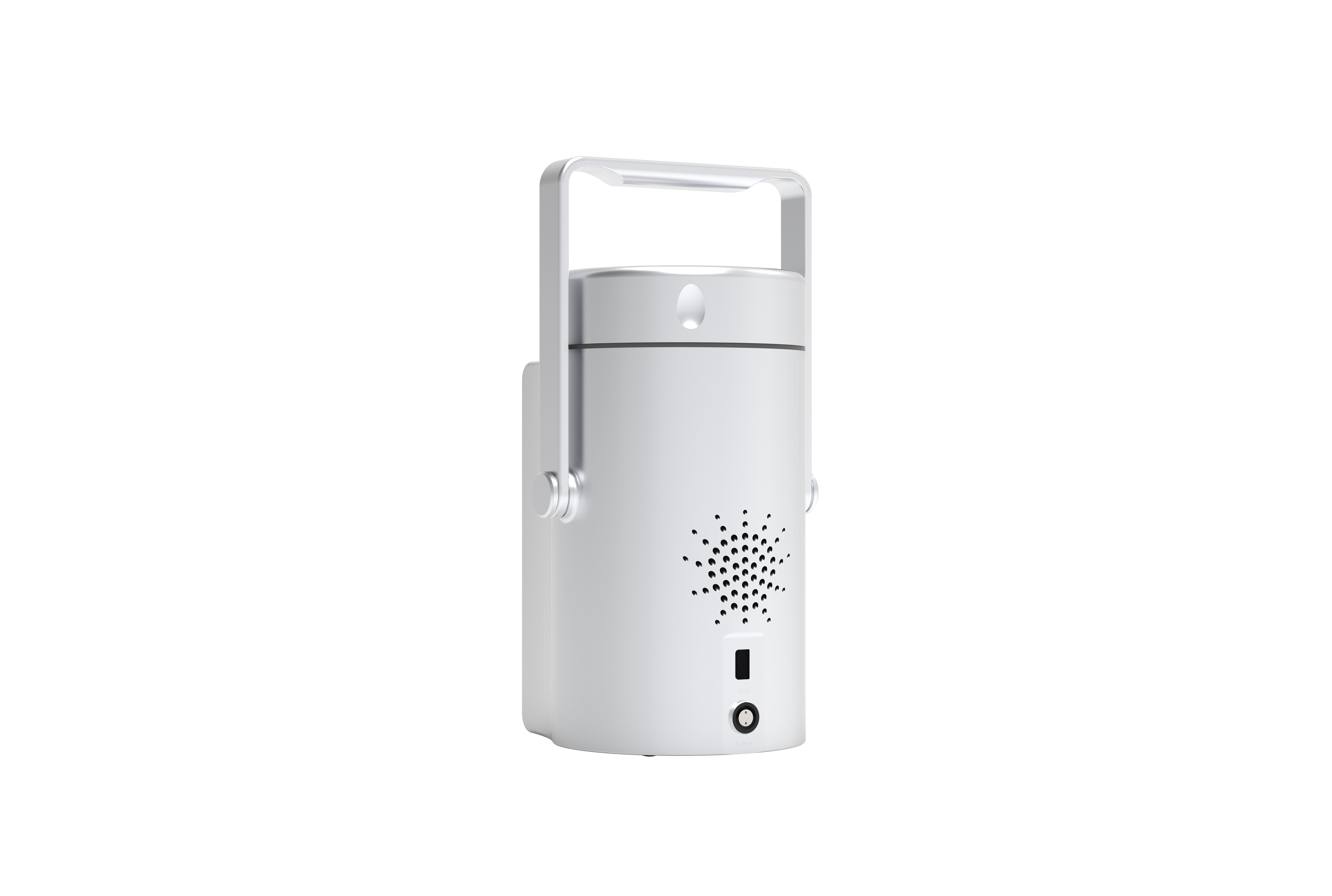

High-Flow BioAerosol Sampler With 220V AC Battery
BioAerosol Air Sampler (BAS) is a high performance air sampler, based on the principle of Andersen impact method.
Flow rate 100L/min
Long battery life ≥10 hours (100L/min)
Data Storage 20,000 sets
Remote sampling 8 m
Product Features
4.3’’ rapid response capacitive touchscreen
All components and circuits interfaces are isolated from the external environment ro prevent oxidant intrusion
Long Battery Life 100L/min≥10hours (60m³）
Flow Accuracy ±2.5%（100L/min）
Compliance with FDA21 CFR Part 11
Remote Sampling
Powerful and stabilized pump to support Remote/Isolator sampling(up to 8m)
Operation Interface
Data
- Intuitive sampling records
- Search function for quick search of records - One-click for exporting and printing
Sampling
- Intelligent sampling mode enables continuous and cyclic sampling
-The sampling process is clear and distinct
LED lighting and beep prompt error
Setup
- Smart Settings mode
- User-friendly input method
Safety Instructions
Installation
Caution
Do not use the device near ethyl alcohol, paint thinners or any other inflammable materials. If inflammable materials come into the device and contact with electrical components inside the devices, it could be a fire hazard.
Do not place any containers with water or liquid on the device. Shut down the device immediately when any liquid falls into or splashes into the device. In addition, if the power cord or any cables are connected, disconnect immediately. Unplug the power code entirely.
Do not place the device on an unstable location such as an unstable platform or sloped surface).
Do not place the device where is vulnerable to severe vibration. Any of these conditions can result in damage to the device or personal injury for those nearby.
Do not place the device in the following location, or it could be a fire hazard.
﹒Locations susceptible to high temperatures.
﹒Close to any open flame.
Specification
FLOW RATE： 100L/min
FLOW RATE ACCURACY： ±2.5%
ZONE： Over 20000 locations
SAMPLING VOLUMES： 1-6000L, 6 default volumes
DELAY： 0-59minutes59seconds
CYCLES： 1-99cycles
INTERVAL： 0-59minutes59seconds
SAMPLING HEAD： Φ0.60mm*280holes
DIMENSIONS： Φ110mm, H: 202mm (without foot mat)
WEIGHT： 2.7kg(6.0lbs)
EXTERNAL SURFACE： Anodized aluminium
POWER： 24V±10% AC adapter
BATTERY： 10.8V, 6800mAh rechargeable lithium battery, running for over 10 hours
DATA STORAGE： 20000 sets of sample records
DISPLAY： 4.3" capacitive touch screen
LANGUAGE： Chinese, English
CALIBRATION FREQUENCY： Recommend once a year
OPERATING CONDITIONS TEMPERATURE：5℃-30℃, relative humidity up to 80%
STORAGE CONDITIONS TEMPERATURE： 0℃-40℃, relative humidity up to 80%
SAFETY： EN 61010-1:2010, EN 61326-1:2013, EN 61326-2-2:2013,EN 61000-6-1:2007, EN 61000-6-3:2007+A1
WARRANTY： 2 years after activation
