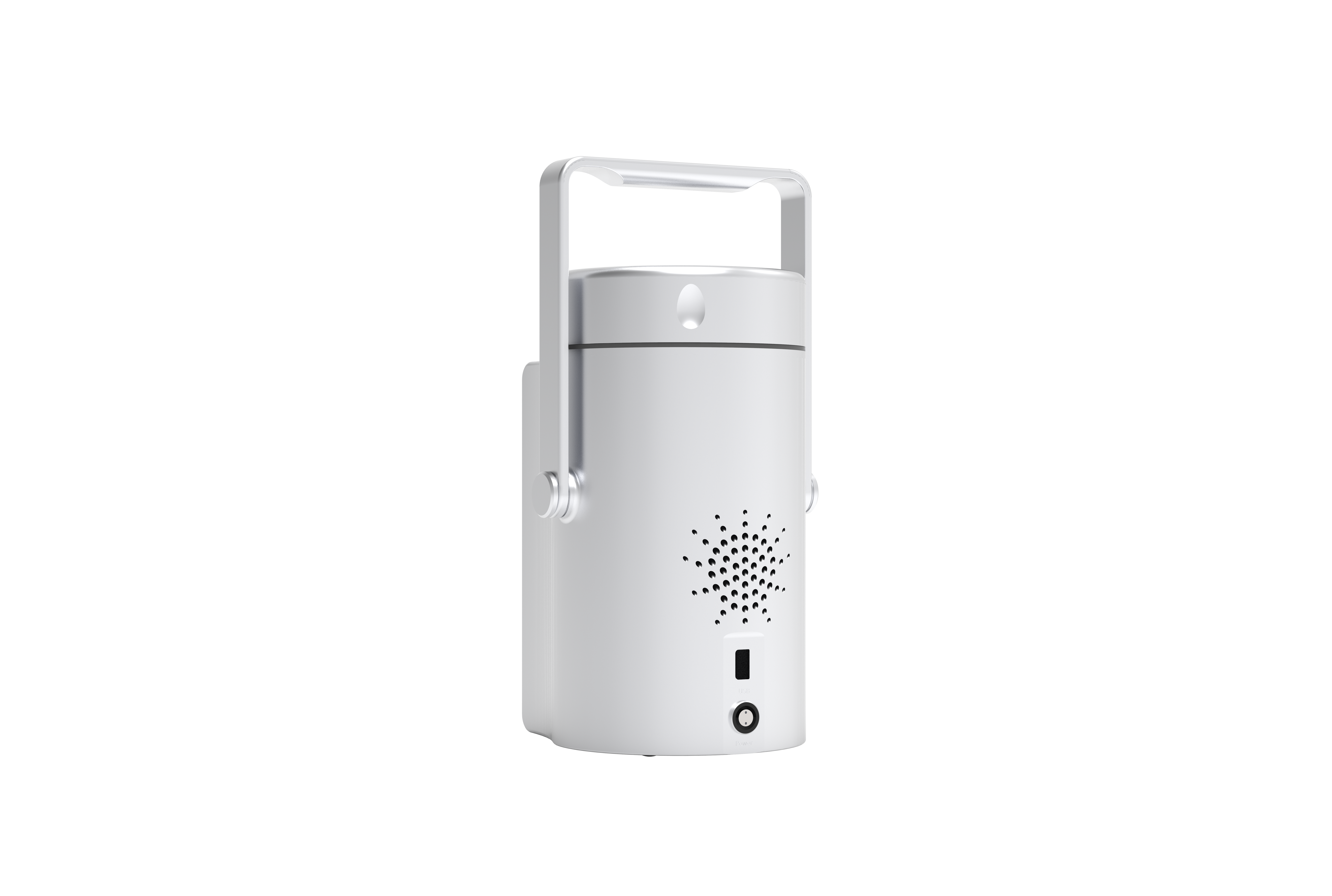

Data Integrity BioAerosol Sampler With 12V DC Battery
BioAerosol Air Sampler (BAS) is a high performance air sampler, based on the principle of Andersen impact method.
Flow rate 100L/min
Long battery life ≥10 hours (100L/min)
Data Storage 20,000 sets
Remote sampling 8 m
Product Features
4.3’’ rapid response capacitive touchscreen
All components and circuits interfaces are isolated from the external environment ro prevent oxidant intrusion
Long Battery Life 100L/min≥10hours (60m³）
Flow Accuracy ±2.5%（100L/min）
Compliance with FDA21 CFR Part 11
Remote Sampling
Powerful and stabilized pump to support Remote/Isolator sampling(up to 8m)
Operation Interface
Data
- Intuitive sampling records
- Search function for quick search of records - One-click for exporting and printing
Sampling
- Intelligent sampling mode enables continuous and cyclic sampling
-The sampling process is clear and distinct
LED lighting and beep prompt error
Setup
- Smart Settings mode
- User-friendly input method
Notes
1. Power supply requires AC 100-240V, 50/60Hz. The regulated power supply is recommended if the local power grid does not meet the requirements.
2. The device should be stored away from direct sunlight.
3. Do not allow corrosive gases, fume and liquid into the inlet.
4. Ensure the inlet and outlet are unblocked.
5. Make sure the sampling tube is free from obstruction when connecting.
Specification
FLOW RATE： 100L/min
FLOW RATE ACCURACY： ±2.5%
ZONE： Over 20000 locations
SAMPLING VOLUMES： 1-6000L, 6 default volumes
DELAY： 0-59minutes59seconds
CYCLES： 1-99cycles
INTERVAL： 0-59minutes59seconds
SAMPLING HEAD： Φ0.60mm*280holes
DIMENSIONS： Φ110mm, H: 202mm (without foot mat)
WEIGHT： 2.7kg(6.0lbs)
EXTERNAL SURFACE： Anodized aluminium
POWER： 24V±10% AC adapter
BATTERY： 10.8V, 6800mAh rechargeable lithium battery, running for over 10 hours
DATA STORAGE： 20000 sets of sample records
DISPLAY： 4.3" capacitive touch screen
LANGUAGE： Chinese, English
CALIBRATION FREQUENCY： Recommend once a year
OPERATING CONDITIONS TEMPERATURE：5℃-30℃, relative humidity up to 80%
STORAGE CONDITIONS TEMPERATURE： 0℃-40℃, relative humidity up to 80%
SAFETY： EN 61010-1:2010, EN 61326-1:2013, EN 61326-2-2:2013,EN 61000-6-1:2007, EN 61000-6-3:2007+A1
WARRANTY： 2 years after activation
