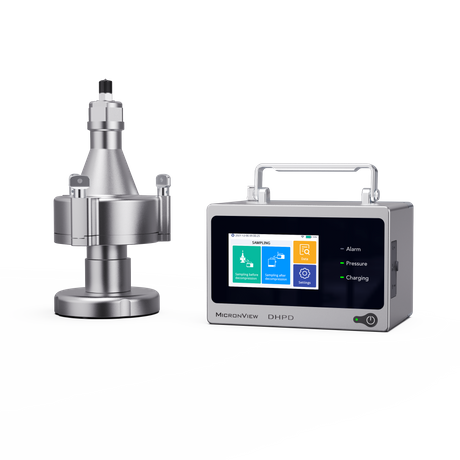

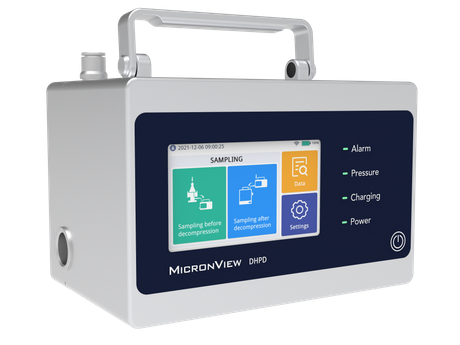

EXTERNAL VIEW AND INTERFACE | |
PRINCIPLE | |
| |
Decompression before sampling After passing through the sampling/detecting device, the compressed gas flows through the DHPD and is decompressed into an atmospheric pressure for release. | |
Decompression after sampling The compressed gas is decompressed into an atmospheric pressure when flowing through the DHPD, and then is output to the back-end sampling / detecting device for sampling or detection. | |
APPLICATION | |

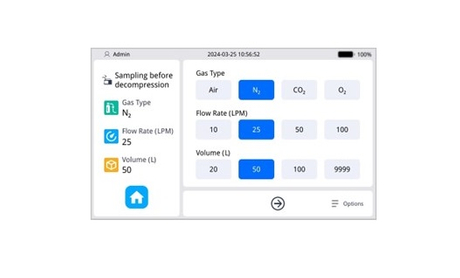

| Mode 1: Sampling before decompression 1. No damage to microorganisms by drop in pressure 2. Automatic sampling 3. Automatic decompression release |
Mode 2: Sampling after decompression 1. High compatibility 2. Automatic sampling 3. Accurate sampling | |
The influence of sampling speed and gas pressure on sampling time | |||
Sampling Volume(L) | Flow rate (with pressure)(LPM) | Gas pressure(relative)(bar) | Time(min) |
1000 | 100 | 1 | 5 |
100 | 3 | 2.5 | |
50 | 1 | 10 | |
50 | 3 | 5 | |
SPECIFICATIONS
Mode 1 (Sampling Before Decompression)
FLOW RATE: 10-100LPM (with pressure) ±4%
SAMPLING VOLUMES: 20-9999L
HIGH PRESSURE SAMPLING HEAD DIMENSIONS: Ф140mmx230(H)mm
HIGH PRESSURE SAMPLING HEAD WEIGHT: 1.5kg (3.3lbs)
PETRI DISH: Ф90-100mm
Mode 2 (Sampling After Decompression)
FLOW RATE: ≥2LPM (atmospheric pressure)
Common Specification
Gas Type: Air, N2, CO2, O2, Ar and other inert gases (for non-flammable and non-explosive area only)
INLET RELATIVE PRESSURE: 1-8bar
INLET TUBING DIAMETER: ID: 5mm, OD:8mm
OUTLET TUBING DIAMETER: ID: 6mm, 8mm, 12mm, 14mm, 16mm, 20mm selectable or silencer
DIMENSIONS (H×W×D): 123x190x120 mm/4.84x7.48x4.72 in (with foot mat)
WEIGHT: 3.1kg (6.8lbs)
EXTERNAL SURFACE: Anodized aluminum
POWER: 24 V±10% AC adapter
BATTERY: 10.8 V, 6800 mAh, rechargeable Lithium battery, running for over 6 hours
COMMUNICATION: USB
DATA STORAGE: 40,000 sets (mode 1: 20,000 sets, mode 2: 20,000 sets)
ACCOUNT NUMBER: 20,000
DATA SECURITY: Multi-level authority management, default authority include admin, supervisor and operator, customized authority available
DATA RELIABILITY: Compliant with FDA 21 CFR Part 11
DISPLAY: 4.3" LCD touch screen
LANGUAGE: Chinese, English
CALIBRATION FREQUENCY: Recommend at least once a year
MAX POWER CONSUMPTION: 20W
OPERATING CONDITIONS: 5-35℃(41-95℉), 5-90%RH non-condensing
STORAGE CONDITIONS: 0°C-40°C(32-104℉), 5-95%RH non-condensing
SAFETY: EN 61010-1:2010+A1:2019, EN 61326-1:2013, EN 61326-2-2:2013, EN 61000-6-1:2007, EN 61000-6-3:2007+A1
WARRANTY: 24 months (calculated from the data of product activation or six months after the date of manufacture, whichever comes first)
